| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors (Check GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | 14th & 13th Gen Intel® Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s; 13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, and Celeron®: DDR5 4800/4400 MT/s |
| 4 x DDR5 DIMM sockets, up to 192 GB (48 GB per DIMM) | |
| Dual channel memory architecture | |
| Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (non-ECC mode) | |
| Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Supports Extreme Memory Profile (XMP) | |
| Onboard Graphics | Intel® HD Graphics support |
| 1 x D-Sub (1920x1200@60Hz max), 1 x HDMI (4096x2160@60Hz max) with HDMI 2.1 and HDCP 2.3 | |
| 1 x DisplayPort (4096x2304@60Hz max), DisplayPort 1.2 and HDCP 2.3 | |
| Supports up to triple-display | |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Supports S/PDIF Out | |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 6 RTL8851BE: WIFI a/b/g/n/ac/ax, 2.4/5 GHz frequency, Bluetooth 5.3 |
| Supports 11ax 80MHz wireless standard | |
| Expansion Slots | 1 x PCIe x16 (PCIe 4.0, x16) for graphics or NVMe SSD |
| 2 x PCIe x1 (PCIe 3.0, x1) | |
| Storage Interface | 1 x M.2 (Socket 3, M Key, 2280 PCIe 4.0 x4/x2 SSD) |
| 1 x M.2 (Socket 3, M Key, 2280 PCIe 4.0 x4/x2 SSD) | |
| 4 x SATA 6Gb/s | |
| RAID 0, RAID 1, RAID 5, RAID 10 support | |
| USB | 1 x USB Type-C® (USB 3.2 Gen 1, internal) |
| 5 x USB 3.2 Gen 1 (3 on the back panel, 2 internal) | |
| 2 x USB 2.0/1.1 ports (back panel) | |
| 4 x USB 2.0/1.1 ports (internal) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 connectors, 4 x SATA 6Gb/s | |
| 1 x front panel header | |
| 1 x USB Type-C® header (USB 3.2 Gen 1) | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header | |
| 1 x serial port header | |
| 1 x parallel port header | |
| 1 x S/PDIF Out header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

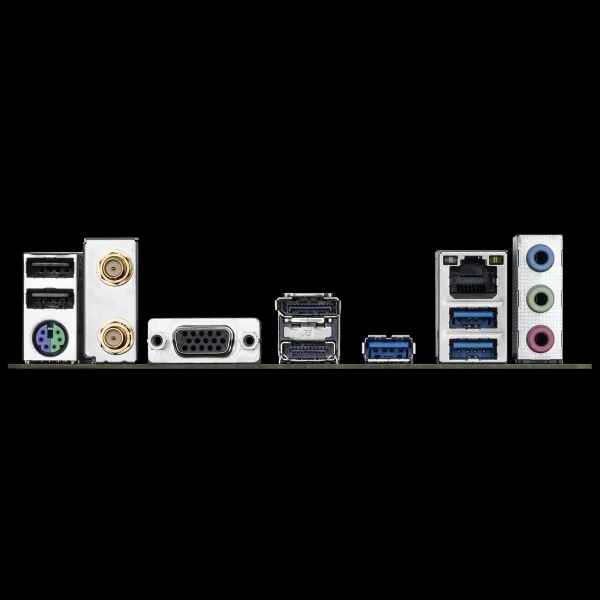

| Back Panel Connectors | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x SMA antenna connectors | |
| 1 x D-Sub port | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (dependent on installed fan) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC) Support, Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
