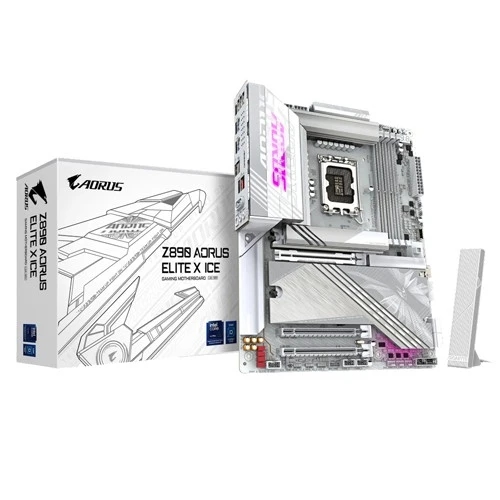

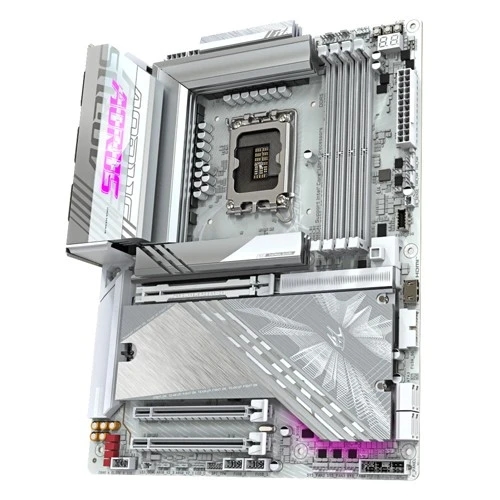

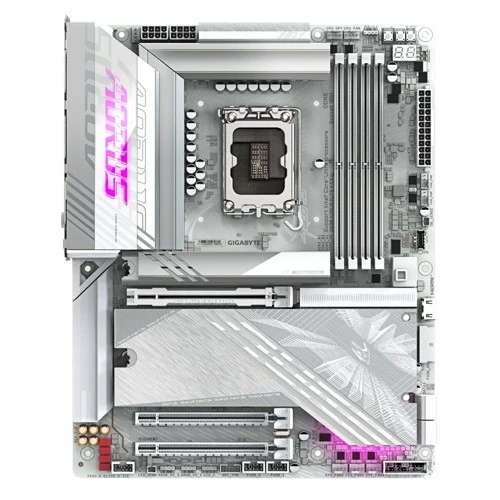

| Model | Gigabyte Z890 AORUS ELITE X ICE DDR5 ATX LGA1851 Matična ploča |
| Procesorsko podnožje (Socket) | Intel Socket 1851 |
| Skup čipova (Chipset) | Intel Z890 |
| Podrška za procesore | Intel Core Ultra Processor |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| Podrška za grafiku - portovi | Integrated Graphics Processor-Intel HD Graphics support: - 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port),supporting DisplayPort and Thunderbolt video outputs (Please use a processor with integrated graphics support to ensure full Thunderbolt functionality.) When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880 60Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160 240Hz (single display output Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors,"for more information.) Support for DisplayPort 1.4 version and HDCP 2.3 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz Support for HDMI 1.4 version. |
| Slotovi za proširenja | CPU:<br> - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) |
| M.2 portovi | 5x M.2 Socket 3 |
| Čuvanje podataka - portovi | CPU:<br> - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)<br> - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset:<br> - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)<br> - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)<br> - 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - Support for 11be 160MHz wireless standard<br> Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - Support for 11be 160MHz wireless standard |
| Bluetooth | 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC<br> The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| USB portovi | CPU:<br> - 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel<br> Support up to 40Gbps with Thunderbolt devices<br> Support up to 20Gbps with USB4 devices<br> Support up to 10Gbps with USB 3.2 devices<br> <br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB<br> header) Chipset+3 USB 2.0 Hubs:<br> - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

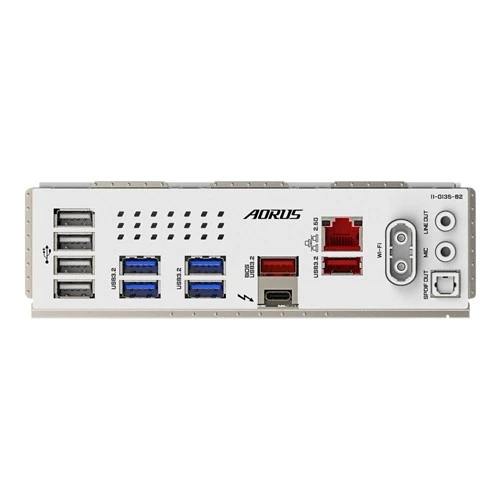

| Konektori na zadnjoj strani | 4 x USB 2.0/1.1 ports<br> 2 x antenna connectors (2T2R)<br> 4 x USB 3.2 Gen 1 ports<br> 1 x Intel Thunderbolt 4 (Note) connectors (USB Type-C ports)<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 1 x RJ-45 port<br> 1 x optical S/PDIF Out connector<br> 2 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 5 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x HDMI port (Note)<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x Q-Flash Plus button<br> 1 x noise detection header<br> 1 x power button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers |
| Posebne mogućnosti | Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control<br> Noise detection<br> Support for GIGABYTE Control Center (GCC)<br> Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> |
| Operativni sistem | Windows 11 |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> |
| Format | ATX |
