| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors<br> AMD Ryzen 8000 Series Processors<br> AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 2x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules<br> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory<br> Dual channel memory architecture<br> Support for ECC and non-ECC Un-buffered DIMM memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules<br> |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br> - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz<br> Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz<br> Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> Support for native HDMI 2.1 TMDS compatible ports.<br> - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz<br> Support for HDMI 1.4 version.<br> |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - Support for 11be 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.)<br> |
| Bluetooth | BLUETOOTH 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC<br> The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out |
| USB portovi | CPU+ASMedia USB4 controller:<br> - 1 x USB4 USB Type-C port on the back panel<br> CPU:<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers |

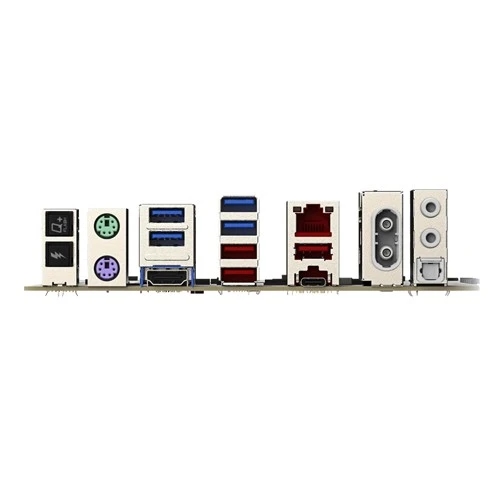

| Konektori na zadnjoj strani | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> 1 x power button (PWR)<br> 1 x reset button(RESET)<br> 1 x Clear CMOS button (CMOS)<br> 1 x Cold Reset button (RTY)<br> 1 x CPU Clock up button (ECLK+)<br> 1 x CPU Clock down button (ECLK-)<br> 1 x BIOS switch (BIOS_SW)<br> 1 x OC Trigger switch (TGR_SW)<br> Voltage Measurement Points |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> |
| Operativni sistem | Windows 11 |
| BIOS | 2 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> Support for DualBIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Extended ATX |
