| Model Version | FS1016 1.0 |
| 10/100 Mbps RJ45 Ports | 16 |
| Shielded RJ45 Port | True |
| Extend Mode Ports | #1~#14 |
| VLAN Mode Ports | #1~#14 |
| LED | Power, Link/ACT of each Ethernet Port |
| Power Interfaces | AC Inlet |
| Physical Buttons | VLAN/Default/Extend DIP Switch |
| Copper Speed & Distance | Cat.3+: 100 m @ 10 MbpsCat.5+: 100 m @ 100 MbpsCat.5e+: 250 m @ 10 Mbps |
| Copper Speed Note | 250 m transmission only on Extend Mode ports when activated |
| MAC Address Table | 8192 |
| Max Switching Capacity | 3.2 Gbps |
| Max Forwarding Rate | 2.38 Mpps |
| Jumbo Frame | 2 KB |
| Packet Buffer | 2 Mbit |
| Power Saving | Basic Power Saving: True |
| Power Methods | AC |
| Power Input | 90-260V~ 50/60Hz |
| Max Power Consumption | 2.0 W |
| Idle Power Consumption | 0.8 W |
| Switching Protocols | 802.3i, 802.3u, 802.3x Flow Control |
| Grounding Methods | Three-Prong Plug, Grounding Point |
| EMS | IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV |
| Operating Temperature | 0~40 ℃ (32~104 ℉) |
| Storage Temperature | -40~70 ℃ (-40~158 ℉) |
| Operating Humidity | 10~90% non-condensing |
| Storage Humidity | 5~90% non-condensing |
| Dimensions | 200×118×44 mm (7.87×4.65×1.73 in) |
| Product Weight | 600 g (21.16 oz.) |
| Casing Material | Metal |
| Installation | Desktop, Rackmount via Brackets |

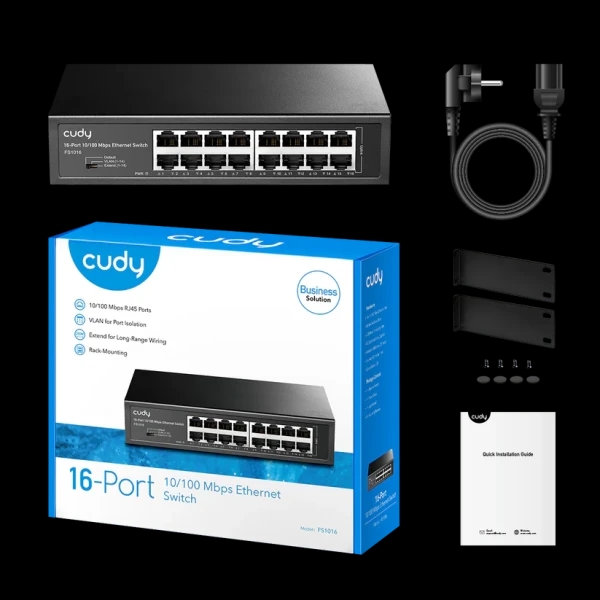

| Package Content | FS1016, Power Cord, Installation Guide, Mounting Kit |
